Medium Flow Pressure Regulators

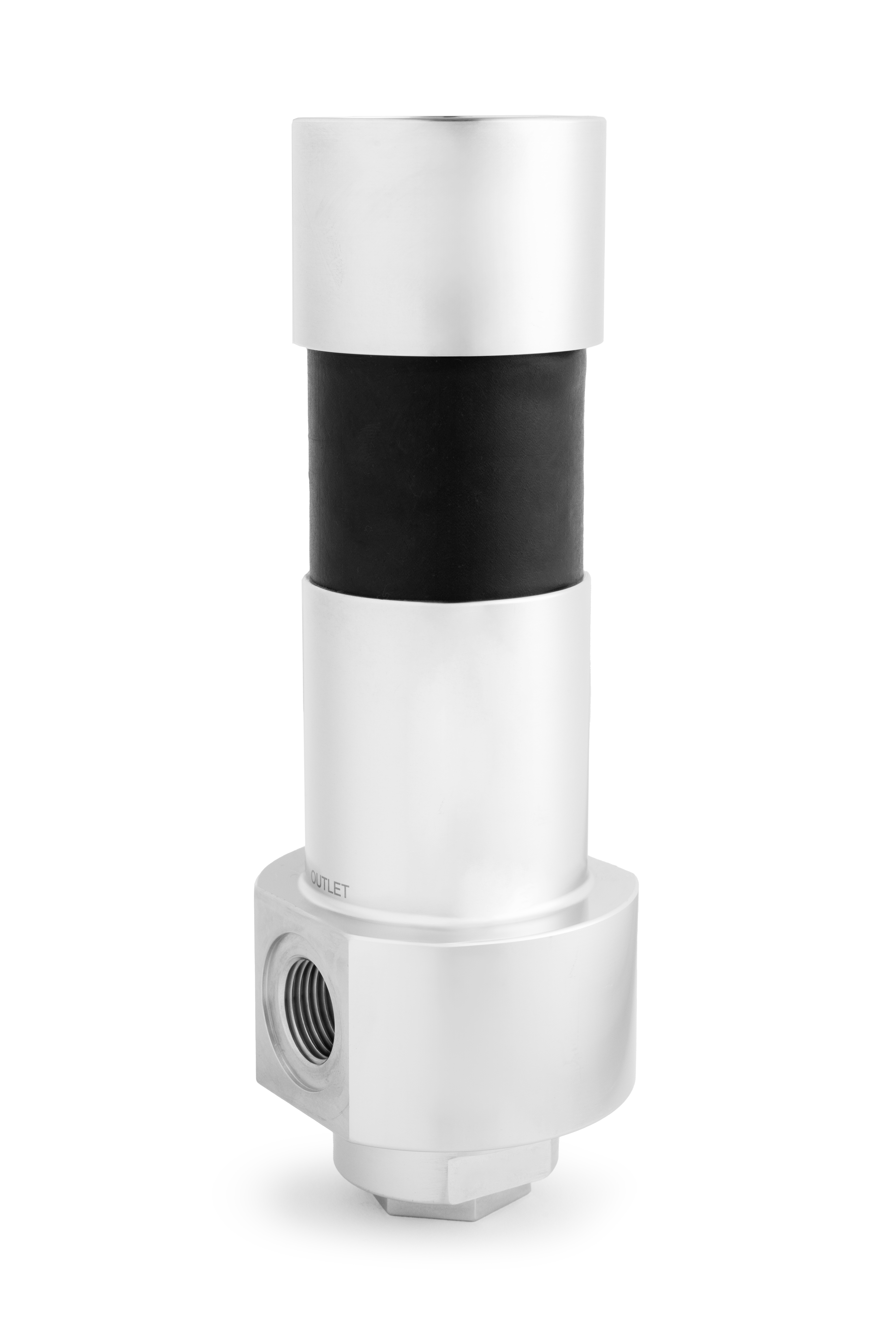

MF301

Medium-Flow Pressure Regulator: Gas or Liquid / Piston / Non- or Self-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 300 bar (4,350 psi) / Cv 2.0

* Basic Model MF301 MF301	* Cv Value 2.0 2.0
* Body Material 316/316L Stainless Steel 316/316L Stainless Steel HT Brass (CW721R)	* Outlet Range Up to 20 bar (290 psi) - Spring-Loaded Up to 20 bar (290 psi) - Spring-Loaded Up to 50 bar (725 psi) - Spring-Loaded Up to 100 bar (1,450 psi) - Spring-Loaded Up to 140 bar (2,030 psi) - Air-Loaded Up to 200 bar (2,900 psi) - Spring-Loaded Up to 300 bar (4,350 psi) - Spring-Loaded
* O Ring EPDM EPDM FKM/FPM NBR	* Inlet / Outlet Connections 1/2" BSPP 1/2" BSPP 1/2" NPT 3/4" BSPP 3/4" NPT
* Porting Configuration 11022000A 20001102A 10102000B 20001010B 10102010C 20101010C 22011010D 10102201D 22001010E 10102200E 20101000F 10002010F 10022000G 20001002G 10102020J 20201010J 10202020K 20201020K 10202000L 20001020L 11022201M 22011102M 10002000N 20001000N 11022020P 20201102P 11002001Q 20011100Q 11022001R 20011102R 11022010R3 20101102R3 22001000U 10002200U 22011000V 10002201V 00000000W 00000000W 10012000X 20001001X 11021020Y 10201102Y In Out Off
* Venting Options Non-Venting Non-Venting Self-Venting

Part Order Number:

MF301 - 2 - S - 20S - E - 04B - A - NV

PRICE & LEAD TIME: Submit online enquiry or contact the Pressure Tech Sales team:
	Phone: +44 (0)1457 899307 Email: sales@pressure-tech.com	ONLINE ENQUIRY

VIEW ACCESSORIES

See example of accessories typically ordered with this product.

INTRODUCING THE MF301...
The MF301 is a piston-sensed non-venting or self-venting regulator for gas or liquid applications. A PEEK™ seat is required for liquid applications.

The MF301 offers a balanced main valve as standard for maximum inlet and control pressures of up to 300 bar (4,350 psi). For higher pressures, please refer to our MF400/401.

Alternatively, an unbalanced option can be offered for applications with maximum inlet and control pressures of up to 50 bar (725 psi).

PLEASE CONTACT THE PRESSURE TECH OFFICE IF YOUR ORDER HAS ANY SPECIAL MODIFICATIONS OR REQUIREMENTS.

APPLICATIONS:

FEATURES:
• Piston sensing element
• Balanced main valve design
• Self-venting or non-venting
• Lower entry plug for simplified seat servicing

Max. Rated Inlet Pressure
Outlet Ranges
Design Proof Pressure
Seat Leakage
Weight

300 bar (4,350 psi)
Up to 300 bar (4,350 psi)
150% max. working pressure
In accordance with ANSI/FCI 70-3
3.2kg (7.2lbs)

Datasheets:	MF301 (English)
Service Instructions:	MF301 (English)
Step File:	MF301-2-B-XX-X-06N-N-XX MF301-2-S-XXS-X-04B-N-XX-XX
GA Drawing:	MF301-2-S-50S-N-04N-N-SV-017
Other:	Image: MF301

Accessories

PT-C-061-005-RING & PT-C-061-005-001-RING
Panel Mount Ring: Stainless Steel or Aluminium / Suitable for Bodies with 55mm Diameter / Used on BP-LF540, HYD691, LF540, LGC690, MF210 and MF301
