Speciality Gas

RLF

Relief Valve: Gas / Cracking Pressure: Up to 60 bar (870 psi)

* Basic Model RLF300 (Up to 300 bar) RLF300 (Up to 300 bar)	* Material Chrome Plated Brass Chrome Plated Brass 316/316L Stainless Steel
* Cracking Pressure 6 bar (87 psi) 6 bar (87 psi) 9 bar (1310 psi) 15 bar (217 psi) 21 bar (304 psi) 42 bar (609 psi) 60 bar (870 psi)	* O Ring EPDM EPDM FKM
* Inlet Connection 1/4" MNPT 1/4" MNPT	* Outlet Connection 1/4" FNPT 1/4" FNPT

Part Order Number:

RLF300 - C - 6 - E - 02NM - 02N

REQUEST PRICE

For further information about this product, please contact:
	Phone: +44 (0)1457 899307 Email: sales@pressure-tech.com

INTRODUCING THE RLF...

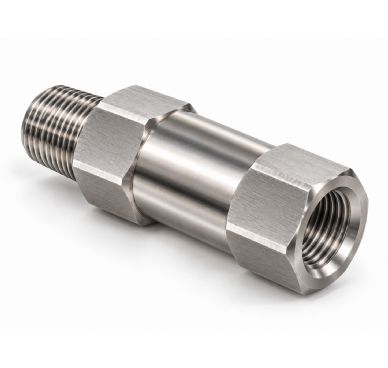

The RLF300 is a compact, high-performance relief valve designed for use in high-purity and specialty gas systems. Suitable for gases up to 6.0 purity, the RLF300 provides reliable overpressure protection with cracking pressures individually specified up to 60 bar (870 psi).

Available in 316 stainless steel or chrome-plated brass, with a choice of EPDM or FKM sealing materials, the RLF300 can be configured to suit a wide range of gas applications.

Its compact construction, low leakage performance and flexible porting options make it particularly suited to gas panels, analytical systems, laboratory installations and other applications where space, cleanliness and dependable pressure protection are critical.

PLEASE CONTACT THE PRESSURE TECH OFFICE IF YOUR ORDER REQUIRES ANY SPECIAL MODIFICATIONS OR REQUIREMENTS.

APPLICATIONS:

FEATURES:
• For high gas purity 6.0
• Compact design
• Targeted design
• Customisable cracking pressure

Max. Operating Pressure
Purity
Weights

300 bar (4,350 psi)
6.0
80g (0.17lbs)

Datasheets:

RLF300 (EN)
