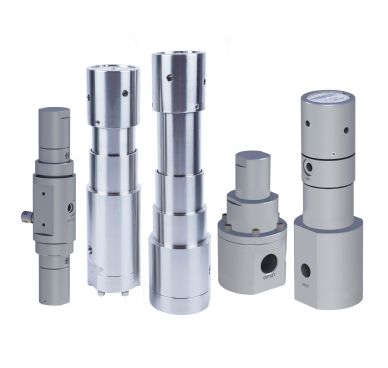

Subsea Pressure Regulators
Designed to operate subsea at depths of up to 3,000m (10,000ft), our subsea pressure regulators can either use the external seawater pressure as a reference pressure, or alternatively, they can be completely sealed to operate at topside ambient pressure conditions, thus, are completely unaffected by external pressure conditions.
A version of the regulator is also available with a 'bucket handle' to allow subsea adjustment by ROVs. We also have an electric-actuated option which enables remote control of the regulator for applications such as subsea where manual adjustments are difficult or time-consuming.
ENQUIRE |  |
|
Subsea Pressure Regulators |
 SS-BP400Medium-Flow Back Pressure Regulator for Subsea Applications: Liquid / Piston / Non-Venting / Max. Inlet: 400 bar (5,800 psi) / Max. Outlet: 10 bar (145 psi) / Cv 2.0 |
SS-COM301Combination Pressure Regulator for Subsea Applications: Gas or Liquid / Piston / Self-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 50 bar (725 psi) / Cv 0.5 |
SS231Pressure Regulator for Subsea Applications: Liquid / Piston / Self-Venting / Max. Inlet: 230 bar (3,335 psi) / Max. Outlet: 35 bar (510 psi) / Cv 1.0 |
SS414Pressure Regulator for Subsea Applications: Gas or Liquid / Piston / Non- or Self-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 250 bar (3,625 psi) / Cv 2.0 / Optional Remote Operation Via Electric Actuator |

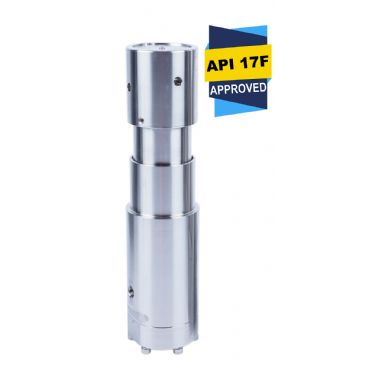

SS690API 17F Approved Pressure Regulator for Subsea Applications: Liquid / Piston / Non- or Self-Venting / Max. Inlet: 690 bar (10,000 psi) / Max. Outlet: 690 bar (10,000 psi) / Cv 0.1 / Optional Remote Operation Via Electric Actuator |
SS691Pressure Regulator for Subsea Applications: Liquid / Piston / Non- or Self-Venting / Max. Inlet: 1,034 bar (15,000 psi) / Max. Outlet: 690 bar (10,000 psi) / Cv 0.1 |
|
